詳細信息

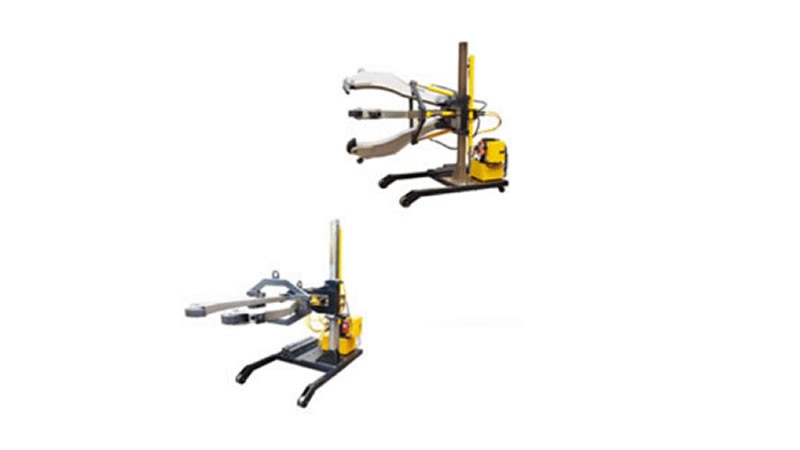

KP系列車載式液壓拉馬
KP Series Vehicle-mounted Hydraulic Lama
產品特點:
Product characteristics:
100噸拉馬帶可調式鉗爪嘴和液壓驅動安全籠Cage設計,能牢固鎖定工件,防止打滑。自動對中防止偏載,保證絲桿始終處于受力中心,延長使用壽命。帶液壓驅動的安全籠Cage調節張距。大功率雙級電動泵,帶線控3m開關。
Cage design of adjustable claw nozzle and hydraulic driving safety cage for 100 tons horse belt can firmly lock workpiece and prevent slippage. Automatic alignment prevents eccentric load, ensures that the screw rod is always in the center of force, and prolongs its service life. Cage adjusts the tension distance of safety cage with hydraulic drive. High-power two-stage electric pump with wire-controlled 3M switch.
如果你們有更多關于液壓扳手的問題,也可以搜索http://www.ewicmfk.cn/或者撥打13871243450,德國進口液壓扳手廠家普朗特將為您提供最專業的解答。
-
系統選型表
KP系列車載式液壓拉馬技術參數:
KP Series Car-mounted Hydraulic Lama Selection Table:
型號
Model
爪數
Claw number
噸位T
load
開幅mm
Open width
行程mm
Trip
升降高度mm
Lift height
重量kg
weight
KP123T
2/3
100
191-1778
304-1219
673-1690
908
KP103T
3
100
191-1778
304-1219
673-1690
855
KP102T
2
100
191-1778
304-1219
673-1690
772
KP204T
4
200
165-1778
304-1219
673-1690
1882
